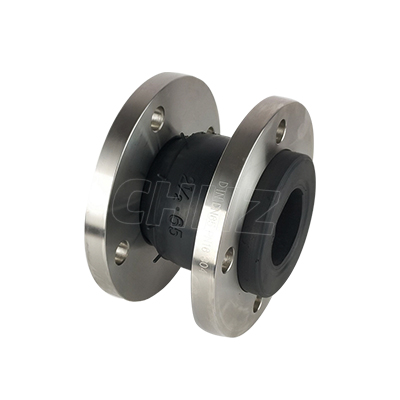

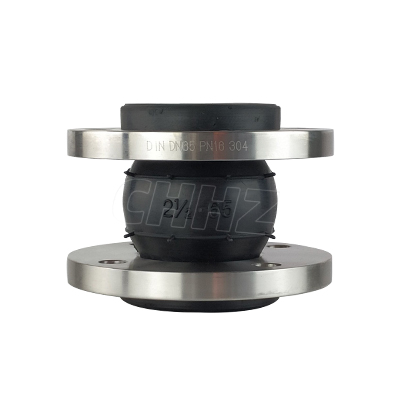

Flanged single sphere expansion rubber joint-Rubber Expansion Joint

Overview

Flanged Expansion Joint is also called Flanged Rubber Joints, pipe shock absorber, flexible rubber joint. We manufacture rubber joint is flexible coupling of metal pipe, composed by inner layer, Nylon cord fabric enhanced, outer layer composite rubber ball and metal flange. Working pressure is higher than ordinary flexible rubber joint. The product has the characteristics of high pressure resistance, good flexibility, big displacement, balance pipe deviation, absorb vibration, reduce noise, convenient for installation.

Flanged rubber joints manufactured could primarily reduce the vibration and the noise of the piping systerm completely solve the different piping problems as dispalcement of joint,axial flex and etc.

According to different material requirment , flanged expansion joint could be made as acid proof,alkali proof,corrosion proof to suit different medium and enviroment.

The material are good sealing ,light weighting,easy to fix and maintain,also has longworking expecting.. But please keep the rubber joint far away from sharp matal in order to avoid breaking of the rubber body.

Features

1,Flanged Rubber Joints are desinged according to ANSI,DIN,BS

2,Type:single sphere joint flange, twin sphere joint flange, twin sphere joint union

3,Main body:EPDM,NR,NBR,neoprene

4,Lining:chinlon cord fabrics

5,Frame:hard steel wires

6,Flange:carbon steel, stainless steel

7,Union:malleable iron

Characteristics:

1.Flanged single sphere expansion rubber joint can greatly reduce pipeline system vibration and noise, can solve the problem of joint displacement, axial expansion, etc.

2.According to different materials manufacture, flexible rubber joint can be made into many kinds: acid resistance, alkali resistance, corrosive resistance, oil resistance, heat resistance, adapt to many mediums and different environment.

3.Material is polar rubber, good sealing, light weight, easy installation, long service life, avoid contacting with sharp metal device.

4.If use overhead, can match with elastic support, when installation, bolt with diagonal method to tighten up.

5. If pipeline pressure is high, use bolt connect the flange both ends.

Specification

Item/ Model	JGD-1	JGD-2	JGD-3
Working pressure Mpa(kgf/cm²)	1．0(10)	1．6 (16)	2．5 (25)
Explosive pressure Mpa (kgf/cm²)	2．0 (20)	3．0 (30)	4．5 (45)
Vacuum Kpa (mm/Hg)	53．3 (400)	86．7 (650)	100 (750)
Applicable temperature ℃	-15℃~+115℃ special up to -30℃~+250℃
Applicable medium	compressed air, water, sea water, hot water, oil, acid, etc

Technical parameter:

Nominal Diameter		Length(mm)	Flange thickness	No. of Bolts	Axial displacement(mm)		Horizontal displacement	Deflection angle
mm	Inch	Length(mm)	Flange thickness	No. of Bolts	Extension	Compression	Horizontal displacement	Deflection angle
32	1.25	95	16	4	6	9	9	15
40	1.5	95	18	4	6	10	9	15
50	2	105	18	4	7	10	10	15
65	2.5	115	20	4	7	13	11	15
80	3	135	20	4	8	15	12	15
100	4	150	22	8	10	19	13	15
125	5	165	24	8	12	19	13	15
150	6	180	24	8	12	20	14	15
200	8	210	24	8	16	25	22	15
250	10	230	26	12	16	25	22	15
300	12	245	28	12	16	25	22	15
350	14	255	28	16	16	25	22	15
400	16	255	30	16	16	25	22	15
450	18	255	30	20	16	25	22	15
500	20	255	32	20	6	25	22	15
600	24	260	36	24	6	25	22	15
700	28	260	36	24	16	25	22	15
800	32	260	38	24	16	25	22	15
900	36	260	42	28	6	25	22	15
1000	40	260	44	28	18	26	24	15
1200	48	260	48	32	18	26	24	15
1400	56	350	44	28	20	28	26	15
1600	64	350	46	40	25	35	30	10
1800	72	350	52	44	25	35	30	10
2000	80	350	54	48	25	35	30	10
2200	88	350	60		25	35	30	10
2400	96	400	62		25	35	30	10
2600	104	400	64		25	35	30	10
2800	112	400	68		25	35	30	10
3000	120	400	70		25	35	30	10
3200
3400
3600
3800
4000
