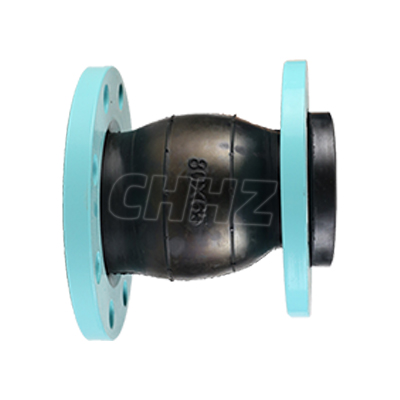

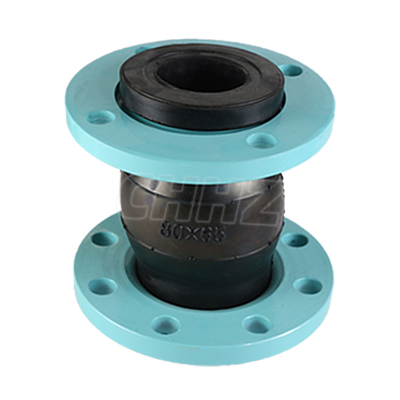

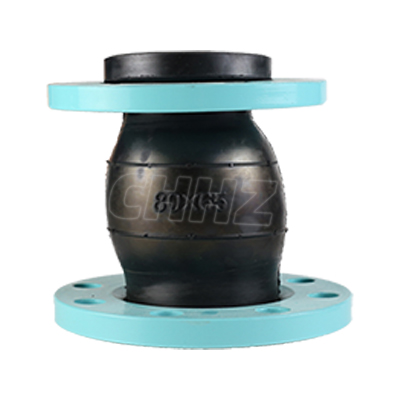

Eccentric reducer expansion joint-Rubber Expansion Joint

Overview

Reduced Rubber Joint Coupling is consist of fabric reinforced and metal flange loose joint.

It has the characteristics of compact structure,light weight,high flexibility,easy installation,long service life.

Reduced Rubber Joint, also known as flexible rubber joint coupling, flexible rubber joints, rubber joints, rubber shock absorbers, rubber expansion joints and so on. The product consists of inner and outer layers of plastic, ply and bead composition tubular rubber parts, high temperature, high pressure molding after curing with metal flanges or parallel connector loose jacket combination. This product utilizes the high elasticity of rubber, high gas resistance, chemical resistance, weatherability and resistance to radiation and other advantages to reduce vibration and noise, and thermal expansion and contraction due to temperature changes from the compensation due to the widely used various piping systems.

Medium:

Water, fresh water, hot and cold water, drinking water, sewage, crude oil, fuel oil, lubricating oil, refined oil, air, gas, steam and particulate powder.

Features

Reduced Rubber Joint Coupling:

(1) Economy: Compared with the systems of mechanic stretching and material damping, Reduced Rubber Coupling has the advantages of little space covering, light weight, easy assembly and disassembly, labor saving and low cost. Its smooth inner wall can reduce flow resistance. It has good water tightness, so there is no need of gasket during the installation. It has wide application, large temperature-resistance scope and long working life. (This product can be used for 20 years if it is used indoors.)

(2) Displacement: Flange is free from pipe decentraction and imbalance. Its good flexibility allows compression, extension, distortion, deflection of vertical displacement, etc. which can prevent the pipeline from damage of deformation and foundation settlement arising from expansion caused by heat and contraction caused by cold.

(3) Shock and noise absorption: The large damping of rubber sphere can effectively buffer and isolate vibration, control and reduce mechanical vibration, and absorb fluid impact noise. The reasonable installation between vibrating machine and metal pipe can decrease structure-borne noise by 15-25 decibels.

(4) Pressure resistance: The multilayered sphere structure can especially endure internal pressure, withstand strong blasting force and impact, and prevent deformation from external pressure. There are many pressure standards on work piece.

(5) Reducibility: After external force compressed, the Reduced Rubber Joint can recover to original state when this force is removed.

(6) Wide application: Different rubber material and formula can make product possess different resistance to heat, oil, corrosion, age, abrasion and ozone.

Specification

Model Item	JDX(DN50~300)	JDX(DN350~600)	Note:
Working pressure (Mpa)	1	0.6	If the medium is oil, acid,alkali material,special requirements for working temperature,please write and provide drawings and samples when placing an order.
Explosion pressure (Mpa)	1.8	1.5
Vacuum(Kpa)	86.7	53.3
Applicable Temperature	-20°C-+115°C(-30°C-250°C under special conditions)
Applicable Medium	Air,compressed air,water,sea water,oil,acid,alkali,and so on
Note:the material of main component is same with that of JGD-A type

Technical parameter:

DN×DN	Length(mm)	Axial displacement(mm)		Horizontal displacemen(mm)	Angular deflection(a1+a2)	Note
DN×DN	Length(mm)	Extension	Compression	Horizontal displacemen(mm)	Angular deflection(a1+a2)	Note
80×50	180	20	30	45	35	The coupling flanges according to National Drainage S311 Standard
100×80	180	20	30	45	35
150×80	190	20	30	45	35
150×100	200	22	30	45	35
200×100	200	22	30	45	35
200×150	200	22	30	40	35
250×200	200	25	35	40	30
300×200	220	25	35	40	30
300×250	220	25	35	40	30
350×200	220	25	35	40	30
350×300	220	25	38	35	30
400×350	220	25	38	35	30
500×400	230	28	38	35	26
600×400	240	28	38	35	26
600×500	240	28	38	35	26
