Overview

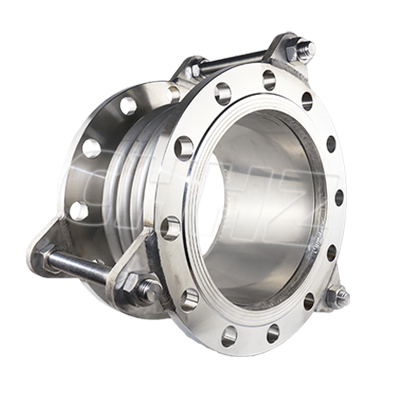

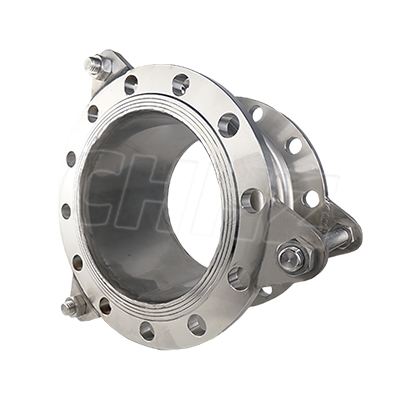

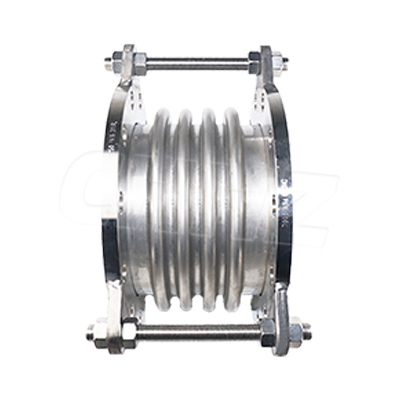

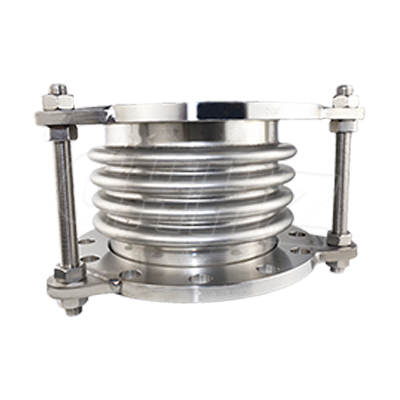

Metal expansion Bellow is compensating elements for thermal expansion and relative movement in pipelines, containers and machines. They consist of one or more metal bellows, connectors at both ends, and tie rods that depend on the application. They are differentiated according to the three basic types of movement: axial, angular and lateral expansion joints.

In axial compensation, the thermal expansion of a straight line section between two fixed points is absorbed by an axial expansion joint. The distance between two fixed points defines the pipeline

length requiring compensation, and thus determines the axial movement that must be achieved by

the Metal expansion Bellow.

In modern Metal expansion Bellow, It is often produced with a so-called multi-ply design. To increase both flexibility and stability, multiple thin plies of metal are layered to form the bellow walls. There are two basic design types: The multi-ply and the multi-walled bellows structure.

Features

Specification
